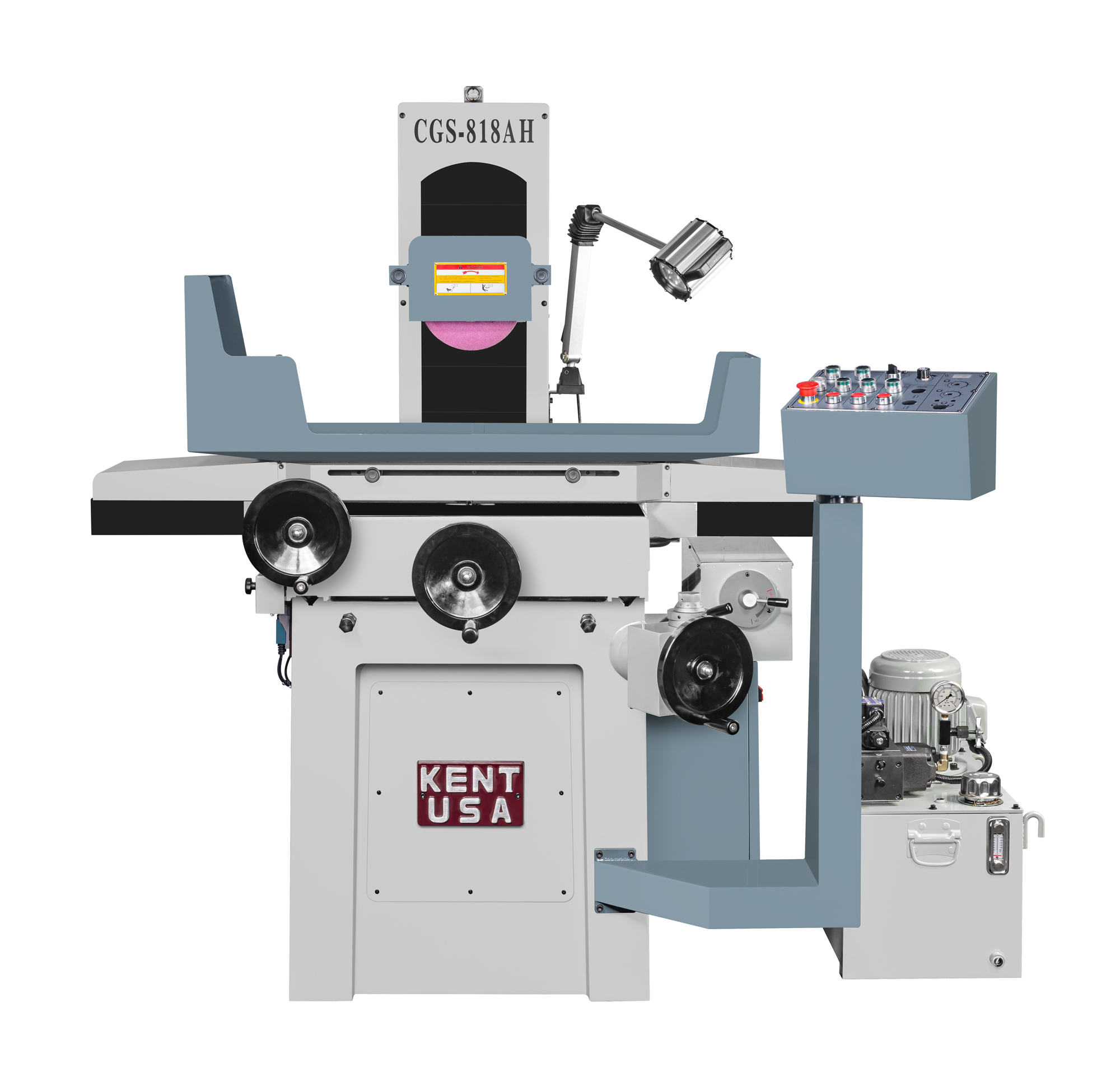

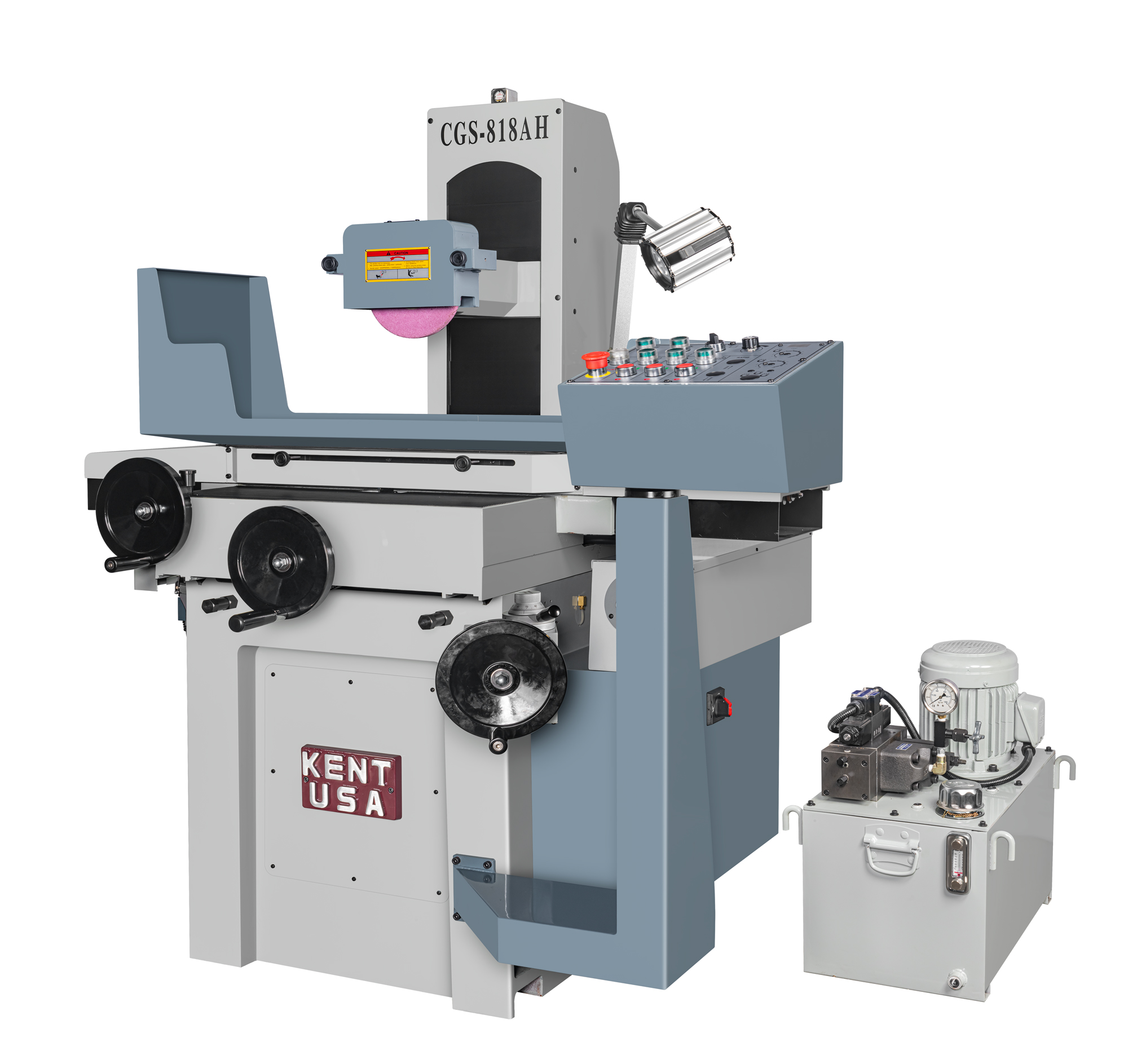

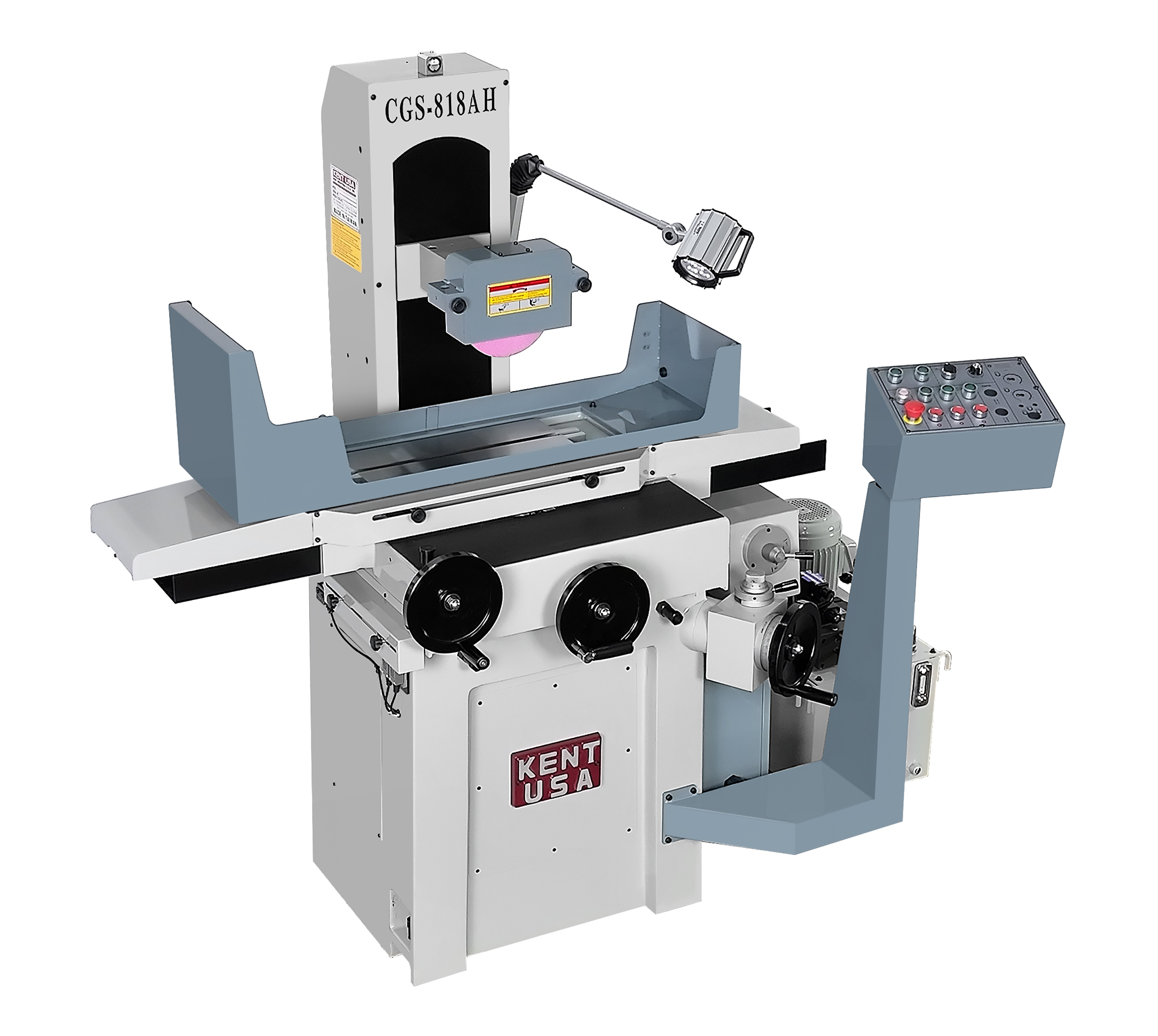

CGS-818AH

Features

  • 8” x 18” working capacity
  • 2-axis automatic movement with hydraulic table movement and electronic auto-crossfeed
  • Precision hand scraped turcite table and saddle ways for smooth and long-lasting precision
  • High column design with 18” spindle center to table for extra clearance under the wheel
  • Cartridge type spindle design for easy serviceability
  • Centralized automatic lubrication system provides lubrication to all points
  • Micro feed (0.00005”) for Z axis
  • Safety 24V control circuit power



*Comparable KGS-818AH Shown

Specifications

Specification KGS-250AHDCGS-818AHKGS-818AH
Working Capacity 8" x 18" 8" x 18" 8" x 18"
Table Travel 19" 19" 19.5"
Saddle Travel 10" 10.25" 8.5"
T-Slot 1 x 9/16” 1 x 9/16” 1 x 9/16”
Spindle Motor 2 HP 3 HP 3 HP
Spindle Speed 3500 RPM 3450 RPM 3580 RPM
Grinding Wheel 8” x 1/2” x 1-1/4” 8” x 3/4” x 1-1/4” 8” x 1” x 1-1/4”
Vertical Graduation 0.0005” 0.0002” (0.00005” on microfeed dial) 0.0002"
Vertical Revolution 0.1" 0.050" 0.050"
Auto Downfeed Increment 0.0001” – 0.001” N/A N/A
Spindle to Table 19" 18" 21"
Net Weight 3400 lbs 1700 lbs 2900 lbs
Gross Weight 3600 lbs 1900 lbs 3300 lbs

Accessories

Standard Accessories

  • Grinding wheel & wheel flange
  • Wheel balancing base & wheel balancing arbor
  • Diamond table dresser base and tip
  • Leveling bolts and pads
  • LED Work light
  • Toolbox with tools

Optional Accessories

  • Digital Readout System (View Brochure)
  • Fine pole electric chuck & control
  • Permanent chuck
  • Dust-suction coolant system
  • Overhead parallel dresser
  • Extra wheel flange
  • Rustlick coolant (1 Gal, Mixes 1:30)
