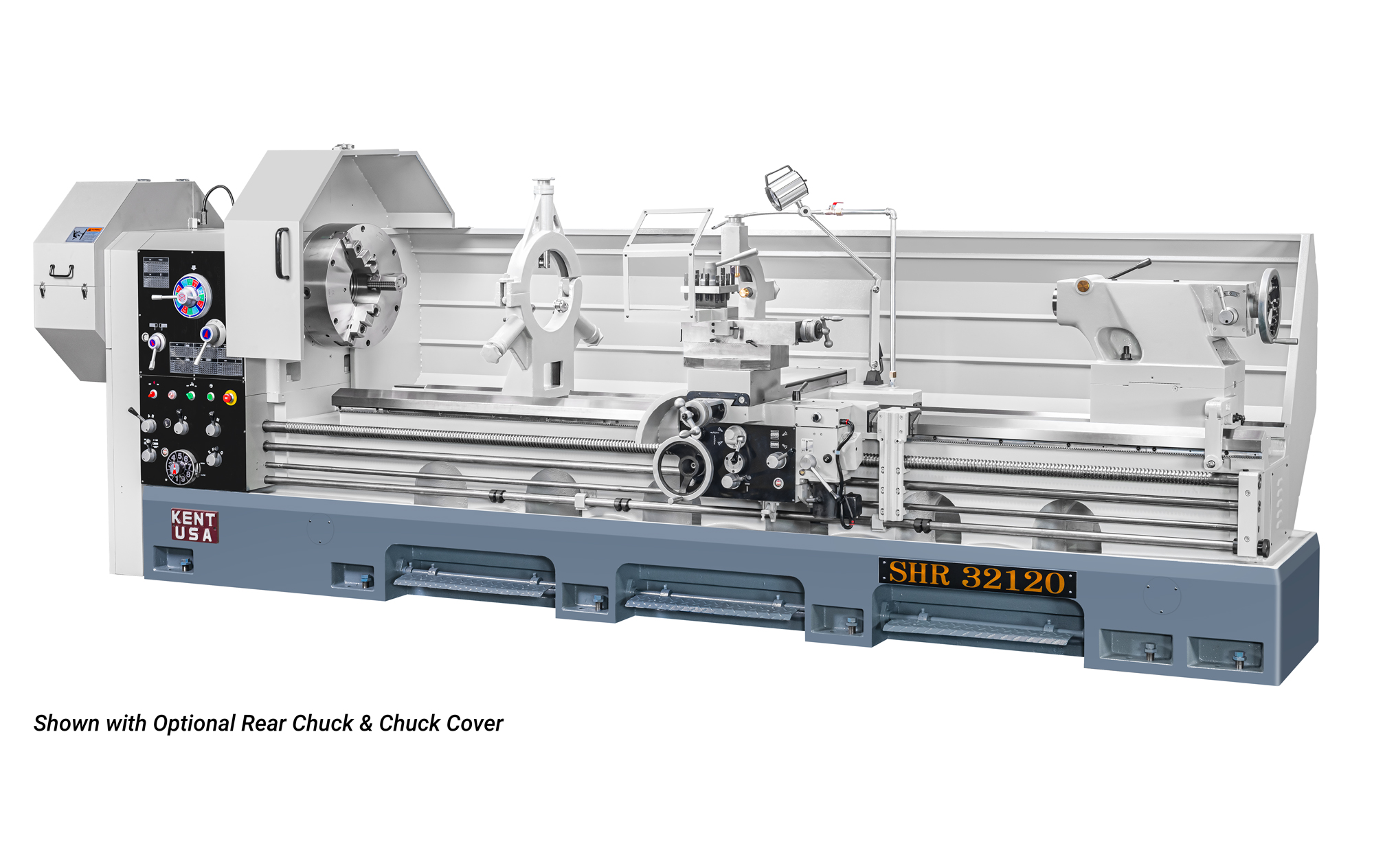

SHR-32 Series
Features
- 20 HP Spindle Motor, 12-Speeds
- 4” (Opt :6”/ 9” ) Spindle Through Hole
- Solid One Piece Full Length Casting Base and Bedways for Maximum Rigidity
- Spindle Jog Button Control
- One-shot Lubrication for Apron, Multi-position Adjustable Feed Position Stops
- Heavy Duty Two Speed Tailstock
Specifications
| Specification | HR-30 Series | SHR-32 Series | HR-35 Series |
|---|---|---|---|
| Swing Over Bed | 30.7" | 32" | 34.6" |
| Swing Over Cross Slide | 21.25" | 23" | 25.2" |
| Swing Over Gap | 42.1" | 44" | 46" |
| Width of Bed | 18" | 18" | 19" |
| Distance Between Centers | 80" (Opt. 120" / 160" / 200") | 80" (Opt. 120" / 160" / 200"/240"/280") | 120" (Opt. 80" / 160" / 200") |
| Cross Slide Travel | 15.35" | 16.5" | 17.32" |
| Top Slide Travel | 9.4" | 10" | 9.4" |
| Spindle Bore | 4" | 4" (Opt: 6"/9") | 4.1" (Opt. 6.1") |
| Spindle Speeds | 12 | 12 Steps | 12 |
| Spindle Speed Range | 14-1000 RPM | 15-1000 RPM (Opt. 10-700 RPM) | 14-1000 RPM |
| Through Hole Diameter | 4.1" (Opt. 6.1") | 4" (Opt. 6" and 9") | 4.1" (Opt. 6.1") |
| Spindle Nose | D1-11 or A1-11 | A2-8 (Opt: A2-11) | D1-11 or A1-11 |
| Spindle Bore Taper | MT#7 - MT#5 | MT#5 (Opt. MT#6) | |
| Thread – Standard (Whit-worth) | 36 (2-72) TPI | 2-28 (DP 4-56) | 45 (2-72) TPI |
| Thread – Metric Pitch | 65 (0.8-14) mm | 0.8-14 (MP 0.5-7) | 39 (0.2-14) mm |
| Longitudinal Feed | 0.002"–0.0276" in/rev | 0.05-0.7 mm/rev | 0.002"–0.0276" in/rev |
| Cross Feed | 0.001"–0.00138" | - | 0.001"–0.00138" |
| Quill Travel | 8.3" | 9” | 12" |
| Quill Diameter | 4.133" | 3-3/4” / Opt: 4-1/8” | 4.133" |
| Quill Taper | MT#6 | MT#5 (Opt. MT#6) | MT#6 |
| Main Motor | 20 HP | 20 HP – 4P | 20 HP |
| Coolant Pump Motor | 1/8 HP | 1/8 HP | 1/8 HP |
| Packing Dimension | 151" / 198" / 231" / 270" x 69" x 73" | 158" / 197" / 236" / 276" / 315" / 354" x 63" x 75" | 198" x 69" x 73" |
| Gross Weight | 9130 - 15400 lbs | - | 9130 - 15400 lbs |
Accessories
Standard Accessories
- Work light
- Steady rest(300mm)
- Center sleeve
- Dead center(MT#5)
- Thread chasing dial
- 4-position tool post
- Coolant system
- Spindle rear mount back plate
Optional Accessories
- Optional 9” spindle bore
- Spindle rear chuck guard
- DRO for 80”(2-axis, x=0.0001”/z=0.0002” res)
- DRO for 120”(2-axis, x=0.0001”/z=0.0002” res)
- DRO installation charge
- Aloris DA #5-SET (Tool Post and 6 holders)
- Royal spindle type live center (M.T. #6)
- 3-jaw chuck w/back plate (16” A1-11, A2-11, Taiwan)
- 3-jaw chuck w/back plate (20” A1-11, A2-11 for 6” bore, Taiwan)
- 3-jaw chuck w/back plate (20” A1-11, A2-11 for 6” bore, China)
- Precision 3-jaw chuck w/back plate (Zero-set, 15” A1-11 or A2-11)
- 4-jaw independent Chuck (20” A1-11, A2-11 for 6” bore, Taiwan)
- 4-jaw independent Chuck (20” A1-11, A2-11 for 6” bore, China)
- 4-jaw independent Chuck (25” A1-11, A2-11 for 6” bore, China)
- 4-jaw independent Chuck (32” A1-11, A2-11 for 6” bore, China)
- Face plate (20” A1-11, A2-11 for 6” bore)
- Follow rest
- Steady rest(300mm)
- Multi-position carriage stop
- Electro-magnetic spindle brake
- Coolant (1 gallon, mixes 1:30)
