CGS-618AH

Features

6” x 18” working capacity
2-axis automatic movement with hydraulic table movement and electronic auto-crossfeed
Precision hand scraped turcite table and saddle ways for smooth and long-lasting precision
High column design with 18” spindle center to table for extra clearance under the wheel
Centralized automatic lubrication system provides lubrication to all points
Micro feed (0.00005”) for Z axis
Safety 24V control circuit power

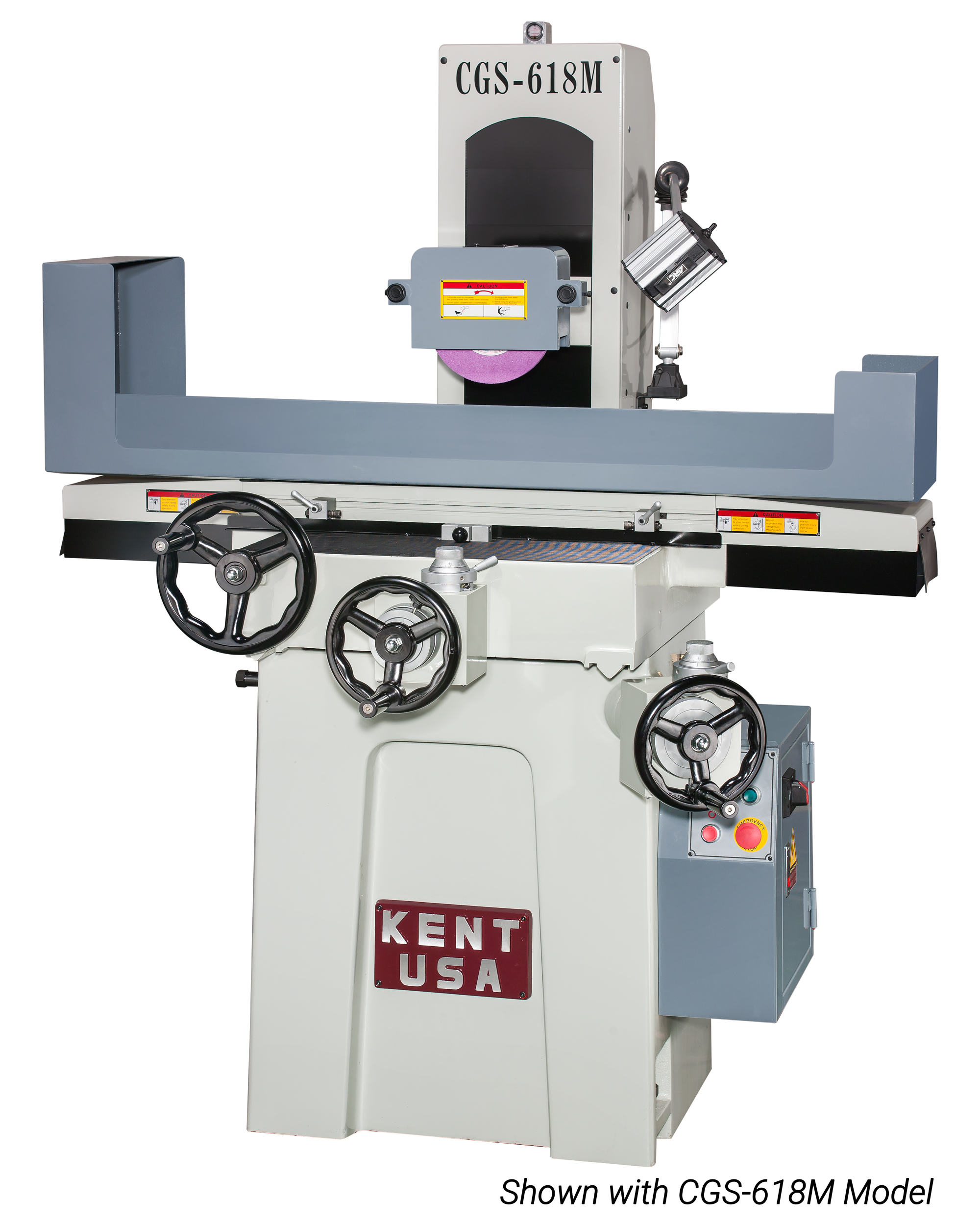

*Larger KGS-818AH Shown

Specification	CGS-618AH	KGS-250AHD	CGS-818AH
Working Capacity	6" x 18"	8" x 18"	8" x 18"
Table Travel	19"	19"	19"
Saddle Travel	7.69"	10"	10.25"
T-Slot	1 x 9/16”	1 x 9/16”	1 x 9/16”
Spindle Motor	3 HP	2 HP	3 HP
Spindle Speed	3450 RPM	3500 RPM	3450 RPM
Grinding Wheel	8” x 3/4” x 1-1/4”	8” x 1/2” x 1-1/4”	8” x 3/4” x 1-1/4”
Vertical Graduation	0.0002” (0.00005” on microfeed dial)	0.0005”	0.0002” (0.00005” on microfeed dial)
Vertical Revolution	0.050"	0.1"	0.050"
Auto Downfeed Increment	N/A	0.0001” – 0.001”	N/A
Spindle to Table	18"	19"	18"
Net Weight	1600 lbs	3400 lbs	1700 lbs
Gross Weight	1800 lbs	3600 lbs	1900 lbs
