HL-44 Series
Features
- 20 HP Spindle Motor, 16-Speeds
- 5.98” Spindle Through Hole
- Extra Heavy Ribbed One Piece Bedways and Base
- Spindle Jog Button Control
- One-shot Lubrication for Apron, Carriage, and Bed Ways
- Two Speed Tailstock
- Magnetic Clutch Brake
- 4 Way Rapid Feed
- NEED AN EVEN LARGER LATHE?

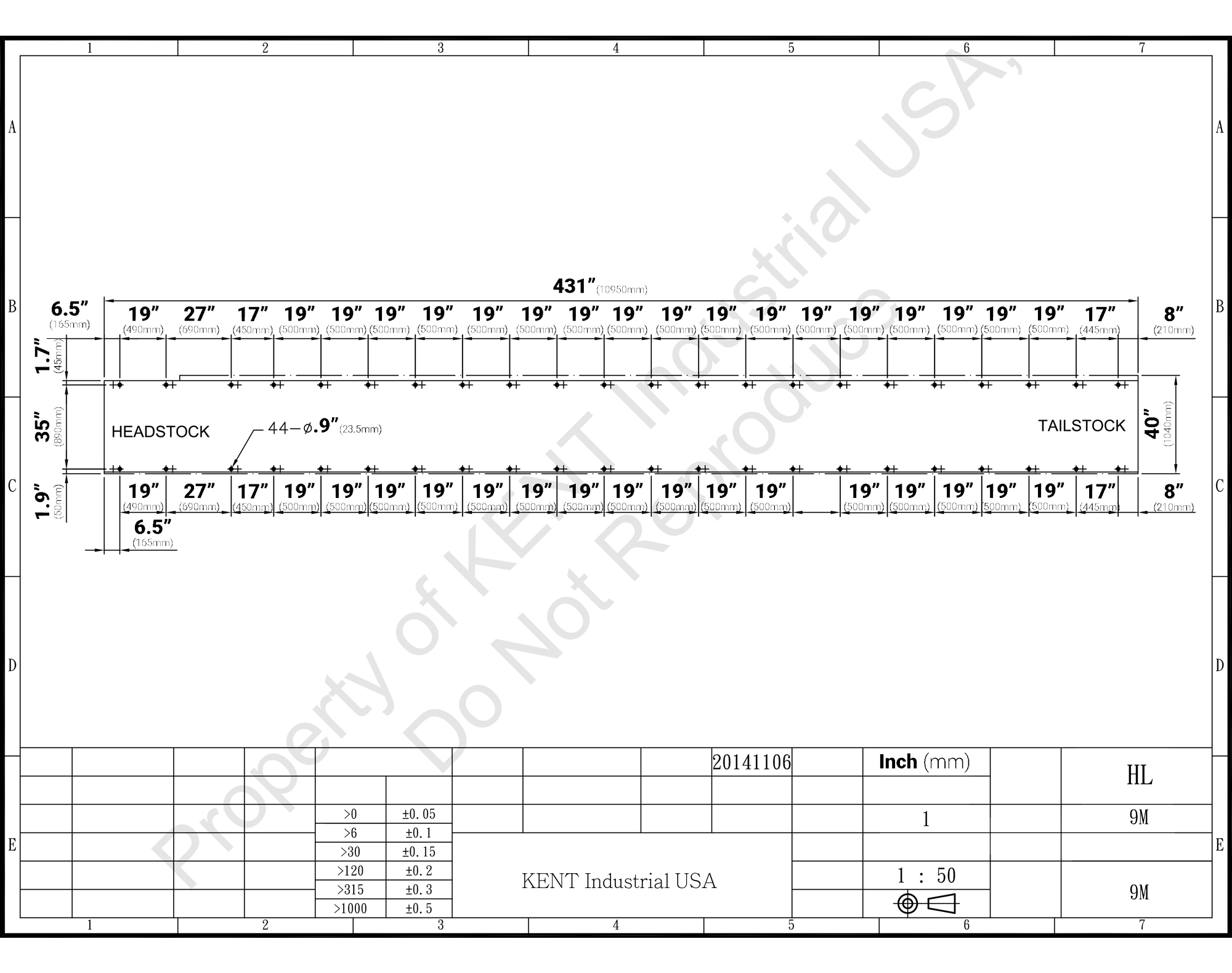

Specifications
| Specification | LA-38 Series | HL-44 Series | HK-44 Series |
|---|---|---|---|
| Swing Over Bed | 38" | 44" | 44" |
| Swing Over Cross Slide | 28.3" | 31.88" | 27.95" |
| Swing Over Gap | 50" | 61" | 55.11" |
| Width of Bed | 20" | 24” | 32" |
| Distance Between Centers | 60" (Opt. 80", 120", 160", 200") | 120" (Opt. 80" / 160" / 200" / 240" / 280" / 320") | 80"~320" |
| Cross Slide Travel | 11.02" | 23.6” | |
| 13.78” | |||
| Spindle Bore | 6" (Opt. 9", 12") | 6.1" (Opt. 9", 12") | Ø 6" (Opt. Ø 9", 10", 12", 15") |
| Spindle Speeds | 18 | 16 | |
| Spindle Speed Range | 4 – 500 RPM (Opt. 4 – 440 RPM) | 4-420 RPM | |
| 5.98" | |||
| Spindle Nose | A2-15 (Opt. A2-20) | ASA A2-11 | |
| Spindle Bore Taper | MT#6 | MT#6 (Opt. MT#7) | |
| Thread – Standard (Whit-worth) | 30 – 0.25 TPI | 1/4-30 TPI | |
| Thread – Metric Pitch | 1 – 120 mm | 1-120 mm | |
| Longitudinal Feed | 0.0032 – 0.096 ipr | 0.00236 – 0.277 IPR | |
| Cross Feed | 0.0016 – 0.048 ipr | 0.00118 – 0.138 IPR | |
| Quill Travel | 5.9" (Opt. 7.9") | 12" | 11.81" |
| Quill Diameter | 4.9" (Opt. 6.5") | 4.5" | |
| MT#6 | |||
| Main Motor | 20 HP (Opt. 30 HP) | 20 HP | 30 HP (50 HP Optional Accessory) |
| Coolant Pump Motor | 1/8 HP | 1/8 HP | |
| Packing Dimension | 127" – 265" x 43" x 66" | 157" - 402" x 60.25" x 67" | |
| Gross Weight | 14450 – 29750 lbs | 20000 – 39820 lbs | 33,935 lbs |
Accessories
Standard Accessories
- Steady rest
- Work light
- Thread chasing dial
- Follow rest
- 4-position tool post
- Coolant system
Optional Accessories
- Digital Readout System
- Chuck cover
- 3-jaw chuck (20″)
- 4-jaw independent chuck (32″ or 40″)
- 9″ / 12″ spindle bore
- Face plate
- Royal spindle type live center
- Taper turning attachment
- Rear of spindle chuck adapter plate for 32″ 4-jaw chuck
- BTC 3-jaw chuck with back plate
- Micrometer carriage stop
- Rustlick coolant
